Why BAT-EMC

Built for laboratories, not for one manufacturer

Nexio makes software only, so BAT-EMC works with the receivers, generators, amplifiers and positioners you already have and the ones you buy next.

Hardware independentChoose any equipment brand. Drivers for all major manufacturers are included and updated free of charge.

500+ instruments supportedKeysight, Rohde & Schwarz, AR, Schwarzbeck, Narda, Tektronix, Anritsu and more, with new drivers added on request.

One interface for everythingRadiated, conducted and reverberation tests, emission and immunity, in a single Windows tree-view environment.

Two years of maintenance includedEvery purchase includes two years of updates, driver additions and phone, email and remote support.

Modular design: one core, licences by test type

600+

EMC laboratories using BAT-EMC

countries

30 yrs

of BAT-EMC development

Test software

The BAT-EMC range

Licences are modular. Start with the test types you run today and add others as your scope grows.

BAT-EMC

The core emission and immunity package. Radiated, conducted and reverberation tests with configurable pre-scan and final scan, antenna mast and turntable control, GTEM calculation to IEC 61000-4-20 and Microsoft Office reporting.

Radiated and conducted immunity: electric and magnetic field, BCI, DPI, stripline, TEM
Radiated and conducted emission: voltage, current, spurious, TEM/GTEM
Customisable test sequences and motion control

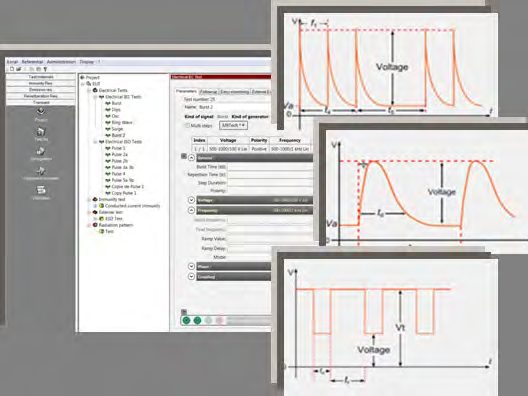

BAT-ELEC

Electrical EMC testing and control: transient, burst and surge sequences on any brand of generator, with scope-based signal verification and automatic screenshots into the report.

IEC 61000-4-4, -4-5, -4-11, -4-12
ISO 7637-2 and ISO 16750 automotive transients
Drivers for EM TEST, Teseq, Haefely, EMC Partner, Schlöder and more

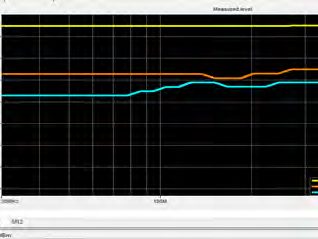

BAT-RADIO

Radiated spurious emission measurement for radio equipment: chamber calibration, prescan, spurious identification, final measurement and substitution method inside the BAT-EMC environment.

ETSI EN 300 328, EN 300 220, EN 301 893, EN 303 687, EN 302 502
FCC §15.247 and §15.407

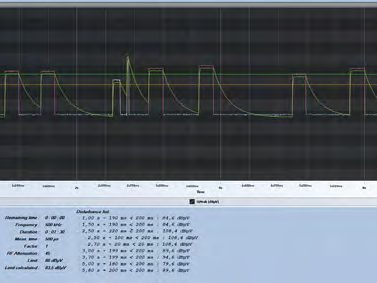

BAT-CLICK

Click rate analysis to CISPR 16-1 and CISPR 14-1 / EN 55014-1 with real-time Max Peak and Quasi-Peak display, event marking and archived reports.

Rohde & Schwarz ESW and ESU receivers over LAN or IEC bus
50 µs time resolution, standard exceptions handled

Semi-anechoic chamber, image courtesy of Frankonia

BAT-NSA / SVSWR

Test-site qualification for anechoic chambers and open area test sites: normalised site attenuation and site VSWR from 1 GHz to 18 GHz.

CISPR 16-1-4 and ANSI C63.4
3 m, 10 m or user-defined distance, volumetric method
Pairs with ICX Lab's site validation service

Chamber image courtesy of Frankonia.

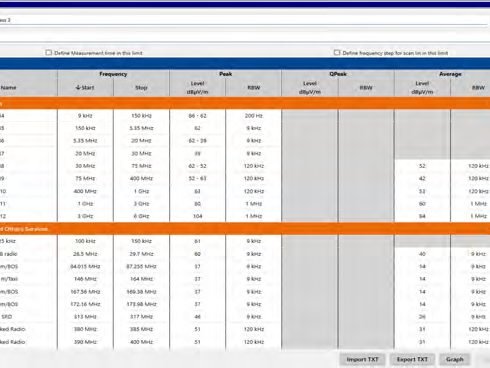

EMI Automotive and HV-LV Hybrid

Emission by band to CISPR 25, developed with automotive OEMs: limit definition per OEM, test definition wizard, RBW 120 kHz prescan overview and automatic remeasurement. The Hybrid licence adds CISPR 25 high-voltage measurements on electric and hybrid vehicles.

Ford, BMW, Mercedes, GM, Stellantis, Renault, Nissan, Toyota and others
HV conducted emission, HV-LV coupling

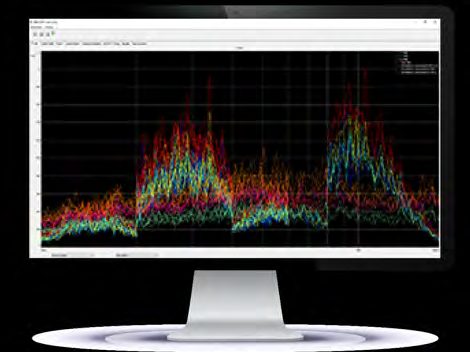

Reverberation

Automated reverberation chamber testing for immunity and emission with empty, loaded and EUT calibration modes and the statistical processing handled by the software.

DO-160, MIL-STD, ISO 11451-5, ISO 11452-11, EN 61000-4-21

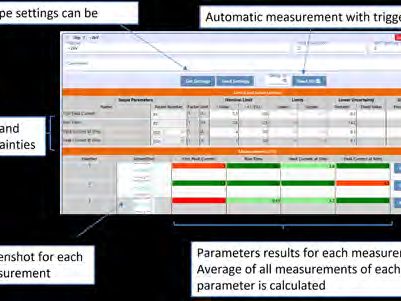

Metrology

Automated in-house verification of EMC equipment with limits, uncertainty and reports, feeding results straight into BAT-EMC transfer functions.

Oscilloscope: ESD guns and transient generators
Network analyser: cables, ESD targets, CDNs and LISNs
Amplifiers: gain, compression, harmonics

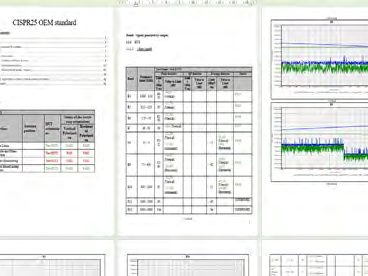

Automatic report

Standardised reports generated from test data in a few clicks. Standard templates are free; custom templates are quoted on request.

Covers every BAT-EMC test type including Metrology, BAT-CLICK, NSA and BAT-ELEC

EUT monitoring

Know the moment the product misbehaves

Add-on licences watch the equipment under test during immunity campaigns and act automatically when a fault appears.

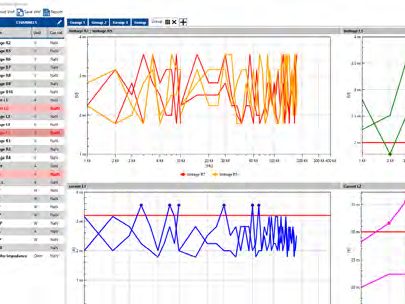

EASY-MONITORING

A family of BAT-EMC add-ons for real-time signal analysis and user-configured actions on fault detection.

Easy Control: voltmeters, multimeters, spectrum analysers, power meters, field probes
Easy Scope: oscilloscope measurements with max, min, RMS, frequency, duty cycle and mask analysis
Easy Script: commands to the EUT over Ethernet, GPIB, serial, EXE or DLL, including automatic reset after a fault
Easy Tool: custom monitoring developed in LabVIEW, Python, C++ or C#

Bring bus and analogue signals out of the chamber over fibre with CHANGEN optic transceivers.

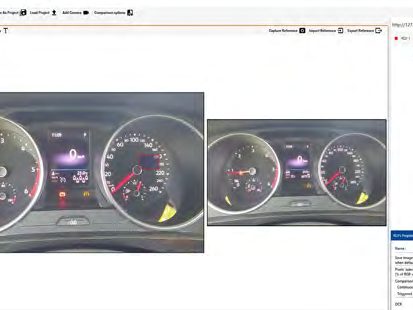

BAT-IMAGE

Video acquisition and comparison: a reference image against the live image to catch warning lights, display anomalies and analogue needle positions during immunity tests, with fault images recorded and passed to the test report.

RCA or HDMI video input
Interfaces to MK Messtechnik camera systems

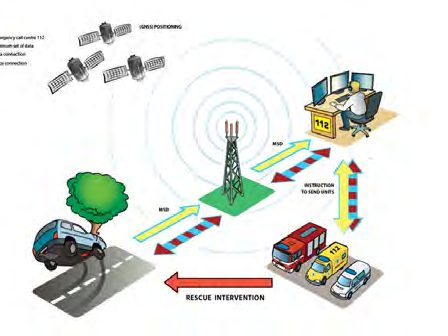

eCall test environment with GNSS simulation and PSAP

eCall and CAN bus

Vehicle communication tools for automotive immunity: the eCall system simulates GNSS positioning and PSAP communication and decodes the MSD, while the CAN bus tool reads and writes bus signals through Vector CANoe/CANalyzer or PEAK PCAN.

Lab management and measuring systems

Beyond the test bench

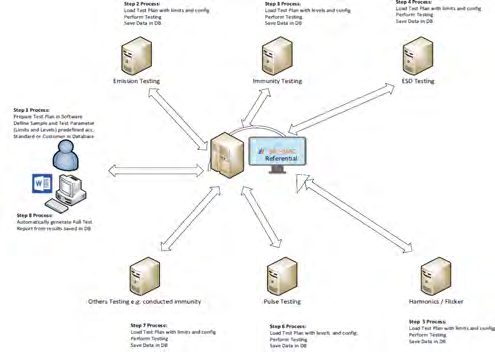

Workstations sharing one BAT-EMC project database over the network

Project management on your network

A shared project database on network drives gives every workstation the same test data, synchronised and traceable, with no manual file exchange.

Metrology and calibration management

Track calibration validity and maintenance for every instrument in a central equipment database, with automated metrology reporting for your quality system.

BAT-SCANNER

A 3D near-field scanning system with BAT-SCAN software for locating disturbance sources on electronic boards before qualification testing.

0.1 mm repeatability and measurement accuracy
Scanning speed up to 1 m/s, integrated camera and probe protection
Compatible with many spectrum analysers, manual or joystick operation

Use the same near-field data at every stage: locate sources during design, investigate failures, check production units and analyse field returns.

Standards and applications

Coverage across every sector you serve

BAT-EMC is used in accredited full-compliance and pre-compliance laboratories in automotive, commercial electronics, aeronautics, space and defence, medical and household appliances.

Drivers for Keysight, Rohde & Schwarz, AR, Anritsu, Tektronix, Schwarzbeck, Narda, Fluke, Prana and more
Support and maintenance from Nexio offices in France, Germany, China and India
Local demonstration, installation and training from ICX Lab

Ask about BAT-EMC

Sector	Standards supported
Automotive	CISPR 12 and 25, ISO 11451 / 11452, ISO 7637, ISO 16750, SAE J1113 and J551, OEM specifications
Commercial electronics	CISPR / EN 55011, 55014, 55015, 55022, 55024, EN 61000-4-3, EN 61000-4-6, FCC Part 15, IEC 61967, IEC 62132
Aerospace and defence	MIL-STD-461 / 462, RTCA DO-160
Radio	ETSI EN 300 328, EN 300 220, EN 301 893, EN 303 687, EN 302 502, FCC §15.247 and §15.407
Test sites and reverberation	CISPR 16-1-4, ANSI C63.4, EN 61000-4-21, IEC 61000-4-20

Why through ICX Lab

Software, chamber, generators and validation from one partner

Local demonstrationSee BAT-EMC driving your own instruments before you buy, on site or at our office in Penang.

Turn-key integrationBAT-EMC delivered together with Frankonia chambers and AMETEK CTS generators as one commissioned system.

Validation and calibrationThe BAT-NSA/SVSWR and Metrology licences fit alongside our accredited calibration and site validation services.

Training and first-line supportOperator training in your time zone, backed by Nexio's maintenance and driver updates.

2 yearsof maintenance included with every licence: updates, new drivers and phone, email and remote support

500+instrument drivers, supplied free and extended on request

4 officesNexio support in France, Germany, China and India, with ICX Lab as your first contact

Product information and images are taken from the Nexio 2026 product catalogue. Pictures and technical sheets are non-contractual. BAT-EMC and the product names above are trademarks of Nexio. Visit nexiogroup.com for the manufacturer's site.
