EMC and antenna chambers, engineered and built in Germany

Frankonia has designed and built anechoic chambers and shielded rooms since 1987 from Heideck, Bavaria, with its own absorber, shielding, door and automation manufacturing. ICX Lab is the authorised distributor and manages your chamber project locally, from site survey to validation.

Plan a chamber Chamber finder
Why Frankonia

One manufacturer for the whole chamber

Absorbers, shielding panels, doors, gates, turntables and masts are all made by Frankonia, so one company is responsible for the performance of the finished room.

Since 1987More than 37 years of EMC and antenna chamber projects for the electronics, automotive and defence industries.
Made in-houseFrankosorb absorbers, PAN shielding panels, doors and gates, and automation all manufactured in Germany and Poland.
Global presenceHeadquarters in Germany, manufacturing in Poland, subsidiaries in China and India, and service representatives in over 80 countries.
Turn-key deliveryConsulting, engineering, manufacturing, implementation and project management from one team, with ICX Lab managing the project locally.
Chamber finder · 3 m

3 m chambers for table-top and floor-standing equipment

Full-compliance and pre-compliance chambers for CISPR 16-1-4 and ANSI C63.4 emission measurement and IEC 61000-4-3 immunity at 3 m.

Frankonia FAC-3 fully anechoic chamber
Fully anechoic

FAC-3

Compact fully anechoic 3 m EMC chamber for table-top equipment.

Details →

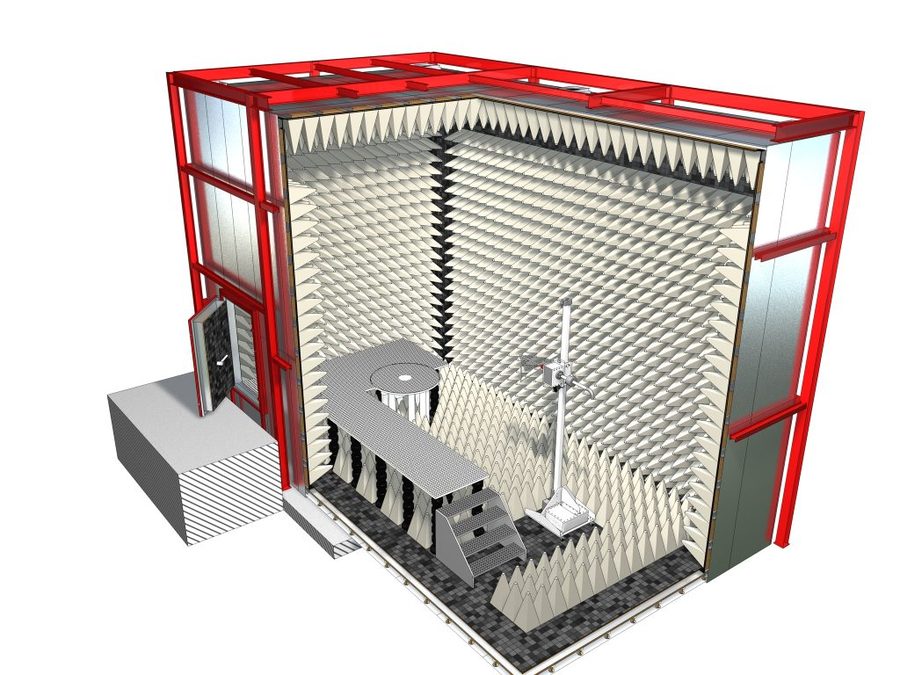

Frankonia FAC-3 L chamber
Fully anechoic

FAC-3 L

Fully anechoic 3 m EMC chamber sized for floor-standing equipment.

Details →
Frankonia SAC-3 Plus chamber
Semi anechoic

SAC-3 Plus

Semi anechoic 3 m EMC chamber with Frankonia's dome-shaped design.

Details →

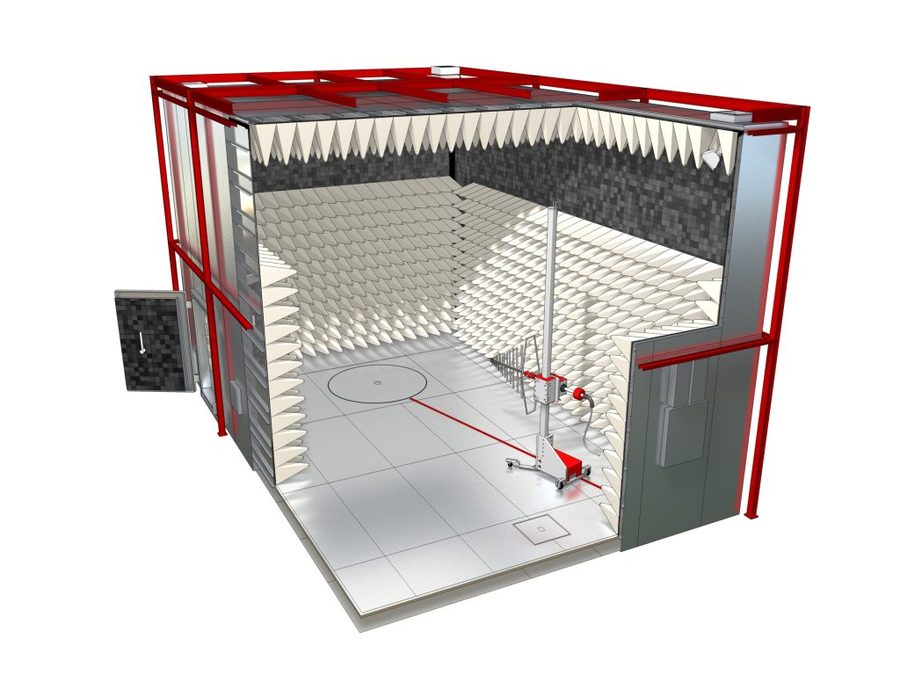

Frankonia SAC-3 Square chamber
Semi anechoic

SAC-3 Square

Semi anechoic 3 m EMC chamber in a rectangular configuration.

Details →

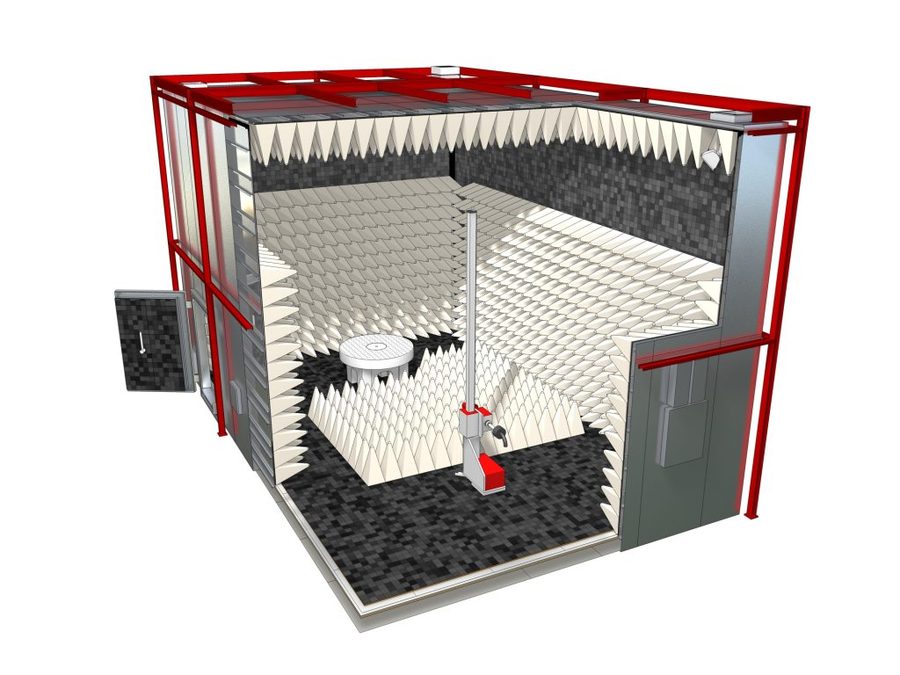

Frankonia SAC-3 / FAC-3 Transformer chamber
Convertible

SAC-3 / FAC-3 Transformer

One 3 m chamber that converts between semi and fully anechoic operation.

Details →

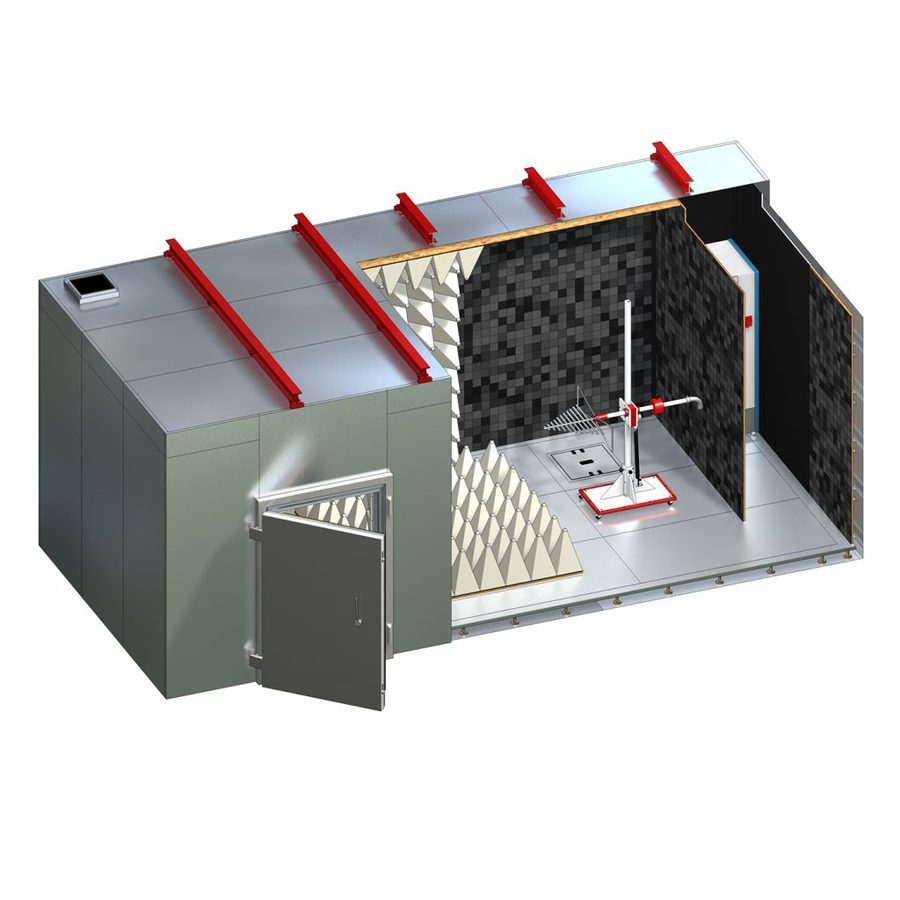

Frankonia CHC compact chamber
Pre-compliance

CHC

Pre-compliant 3 m compact EMC chamber with a small footprint.

Details →

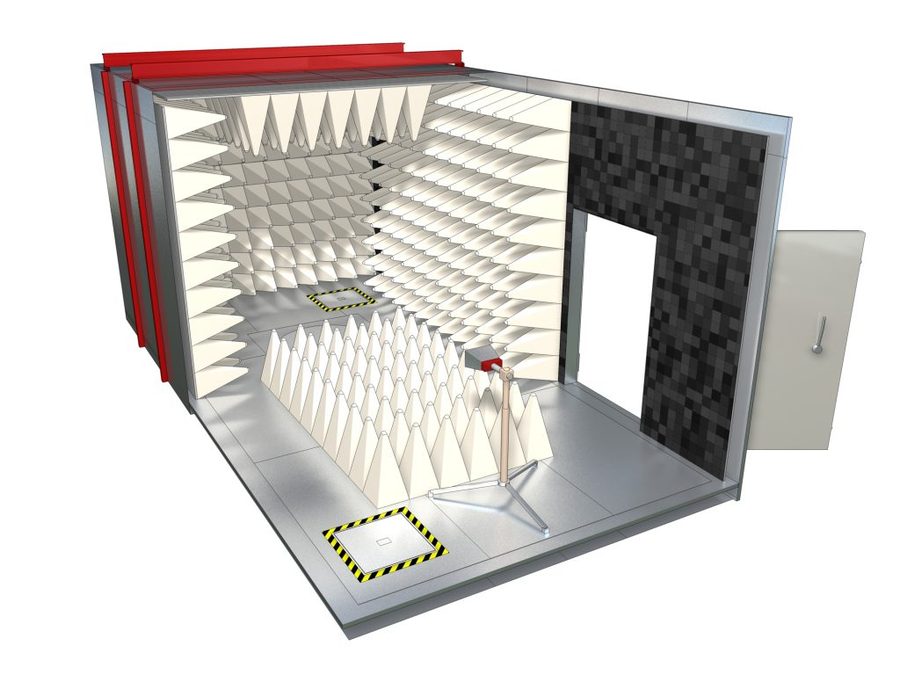

Frankonia CHC Plus chamber
Pre-compliance

CHC Plus

Enhanced compact 3 m pre-compliance chamber.

Details →
Frankonia CTC compact testing chamber
Compact

CTC

Compact testing chamber for general EMC work where space is limited.

Details →
Chamber finder · 5 m and 10 m

5 m and 10 m chambers for full compliance and vehicles

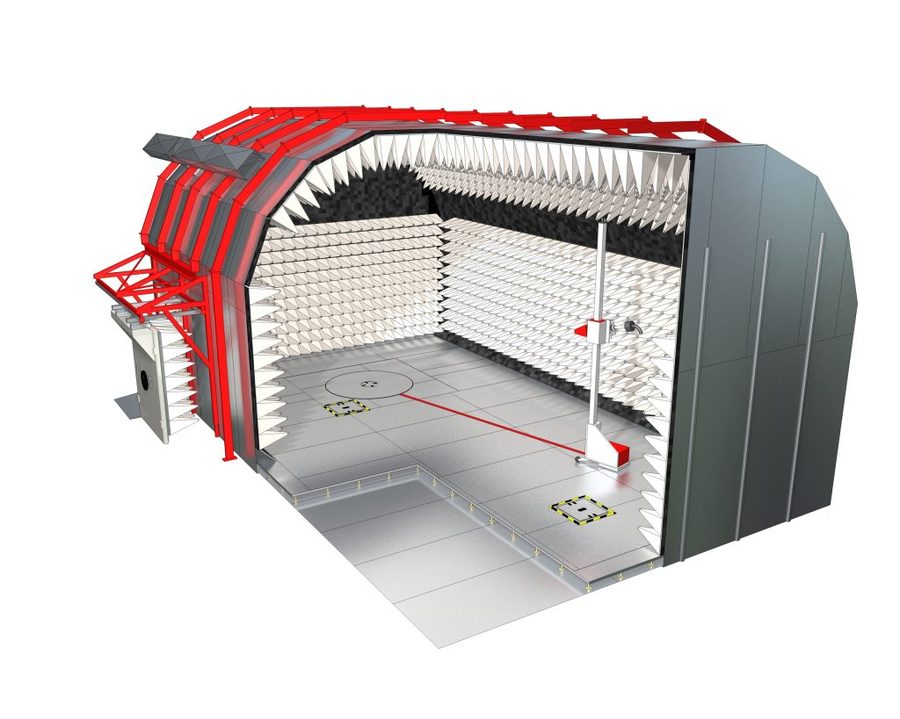

Frankonia SAC-5 Plus chamber
5 m

SAC-5 Plus

Semi anechoic 5 m EMC chamber with dome-shaped design.

Details →

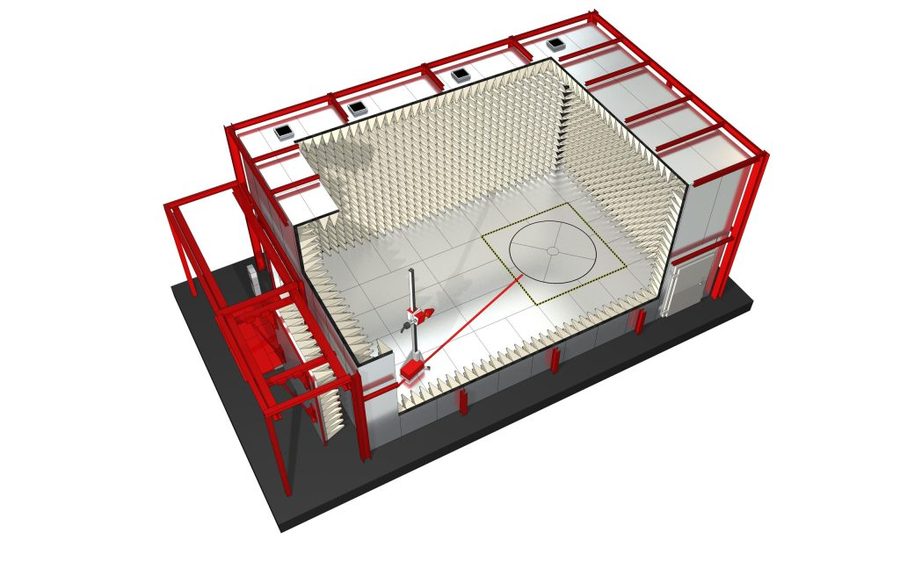

Frankonia SAC-5 Square chamber
5 m

SAC-5 Square

Semi anechoic 5 m EMC chamber in the traditional rectangular design.

Details →

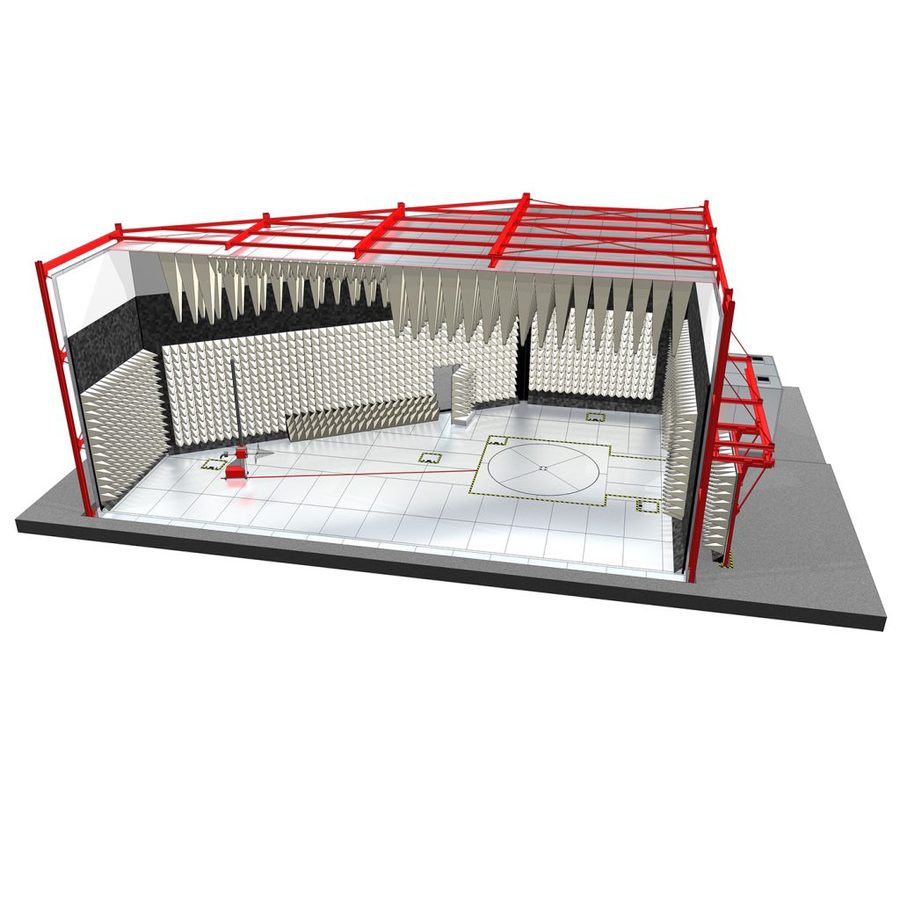

Frankonia SAC-10 Plus chamber
10 m

SAC-10 Plus

Semi anechoic 10 m EMC chamber with a single-axis turntable.

Details →

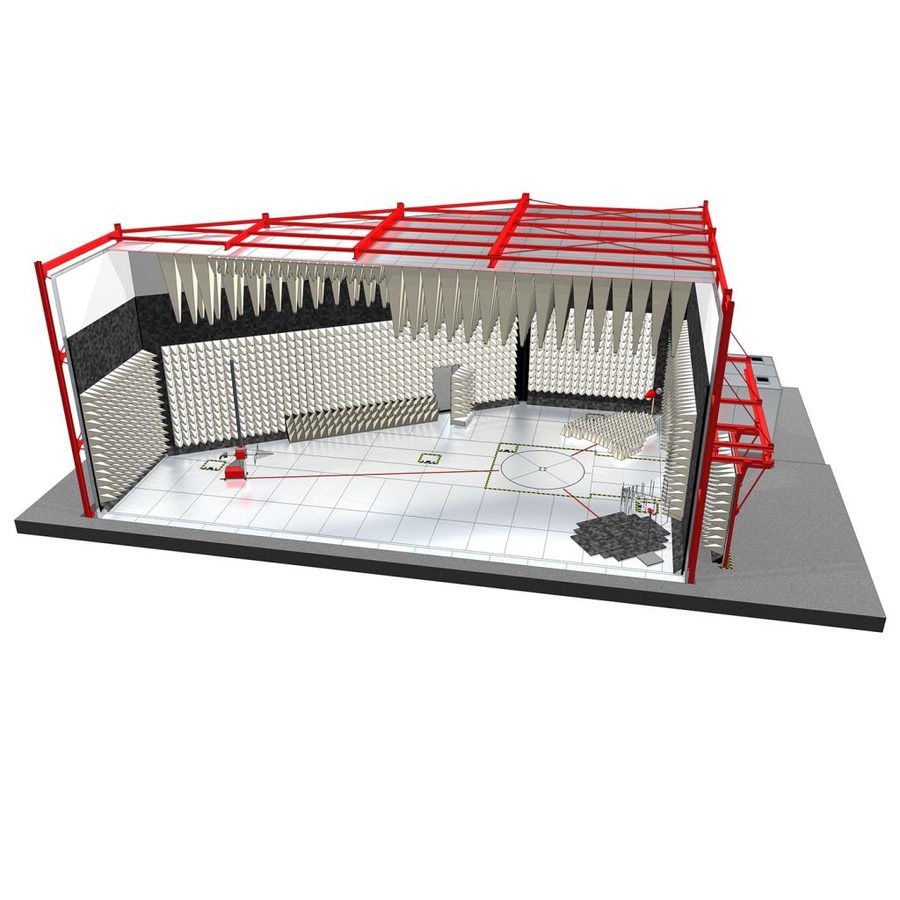

Frankonia SAC-10 Plus Triton chamber
10 m

SAC-10 Plus Triton

Multi-axis semi anechoic 10 m chamber for multi-directional vehicle testing.

Details →

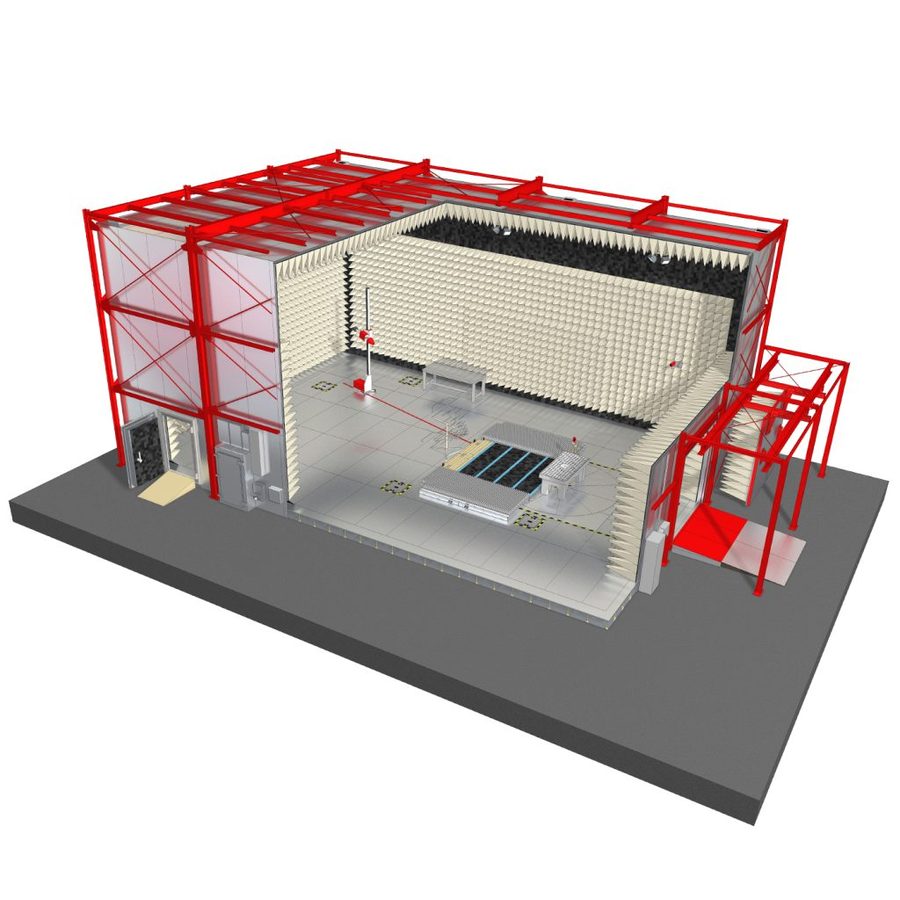

Frankonia SAC-10/H Hybrid chamber
10 m

SAC-10/H Hybrid

Semi anechoic 10 m chamber lined with hybrid absorbers for broadband efficiency.

Details →

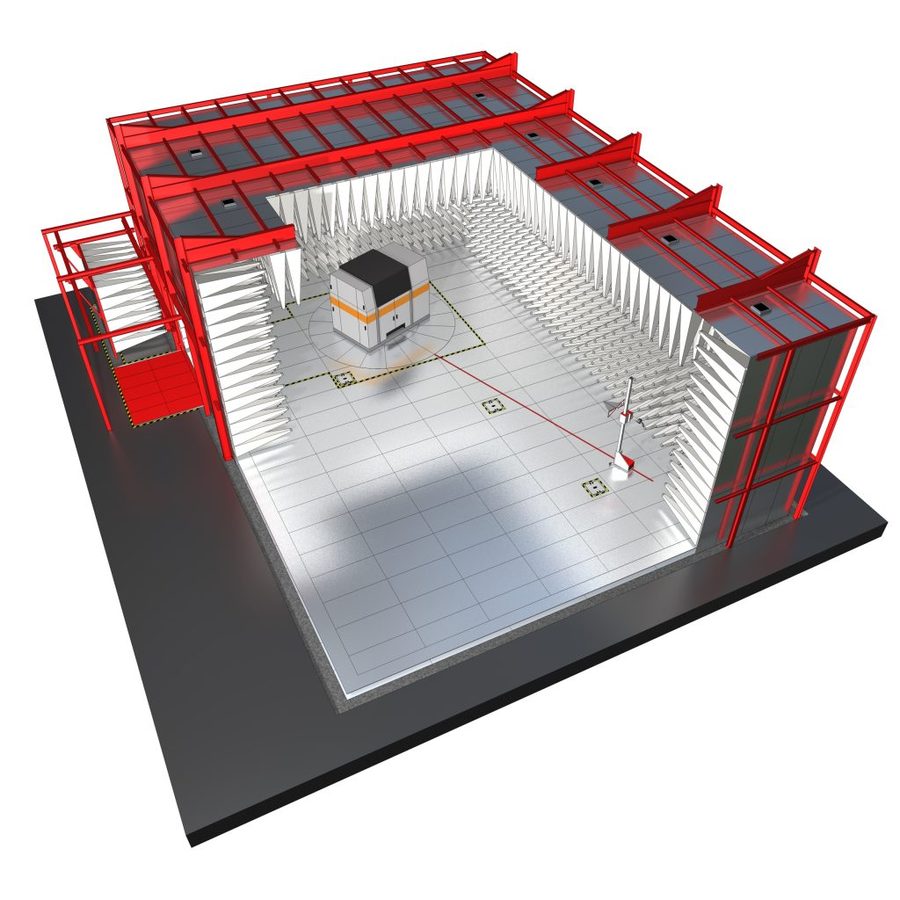

Frankonia SAC-10/P Pyramid chamber
10 m

SAC-10/P Pyramid

Semi anechoic 10 m chamber with long pyramid absorbers for extended low-frequency performance.

Details →

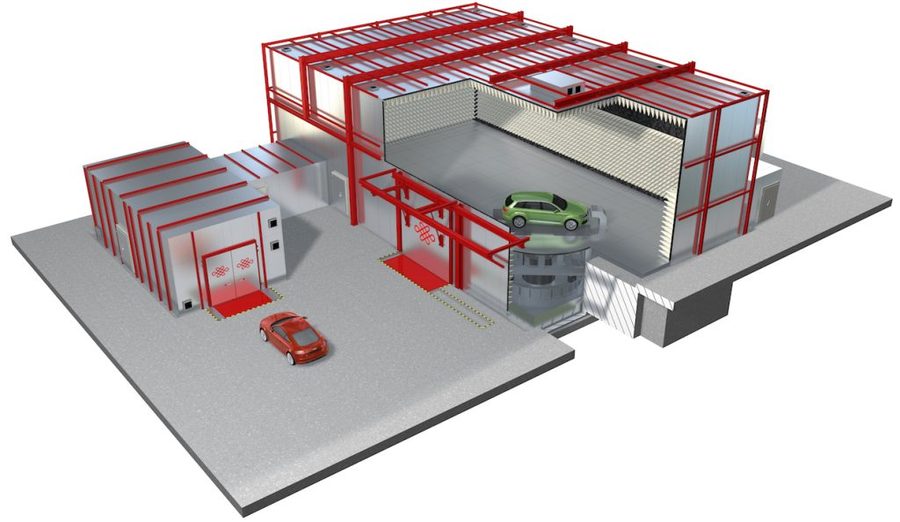

Frankonia SAC-10V vehicle chamber
10 m · vehicles

SAC-10V

Semi anechoic 10 m EMC chamber dedicated to vehicle tests to ECE R10.

Details →
Chamber finder · Automotive, defence and special

Component, vehicle, military and reverberation chambers

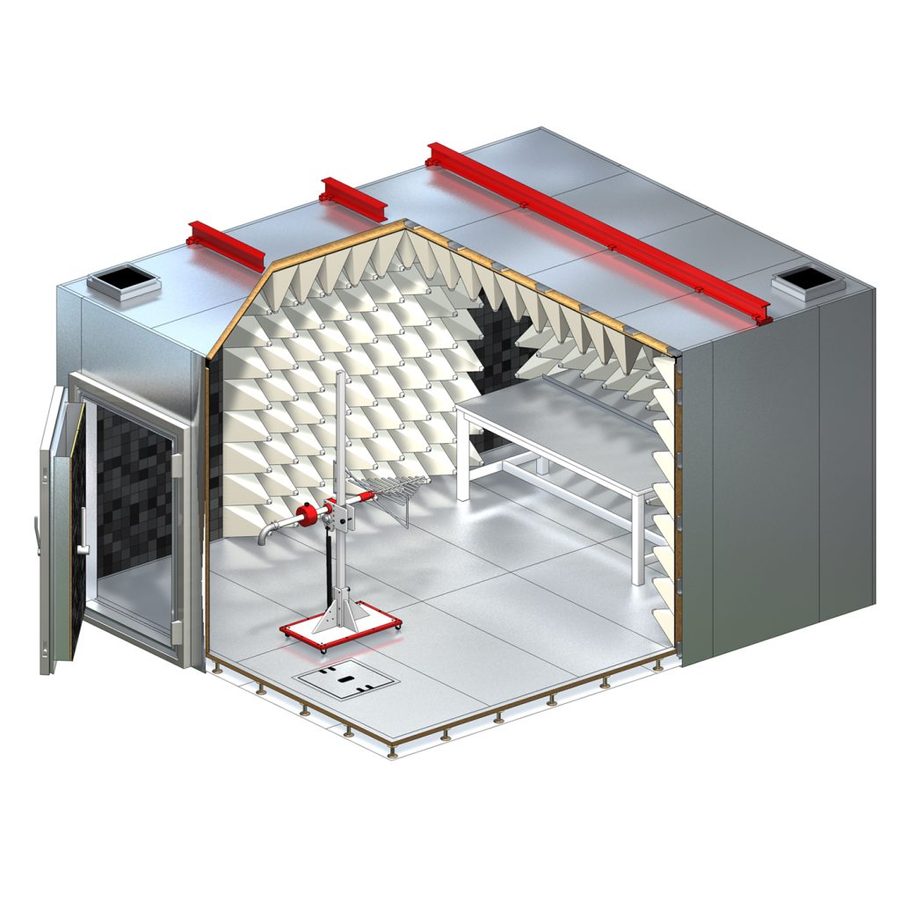

Frankonia ACTC automotive component testing chamber
Automotive

ACTC

Automotive component testing chamber for ISO 11452 and CISPR 25.

Details →
Frankonia AVTC automotive vehicle testing chamber
Automotive

AVTC

Automotive vehicle testing chamber for whole-vehicle emission and immunity.

Details →
Frankonia UCC chamber
Automotive

UCC

Pre-compliance automotive component testing chamber.

Details →

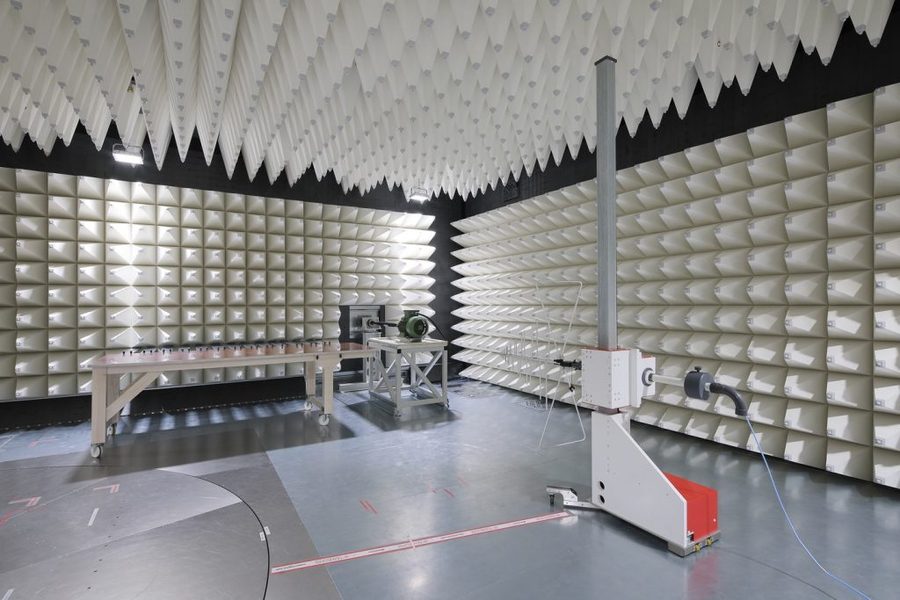

Frankonia EDTC-SA dynamometer chamber
Automotive · dynamometer

EDTC-SA

Vehicle chamber with single-motor electric or hydraulic positioning for drive-mode testing.

Details →

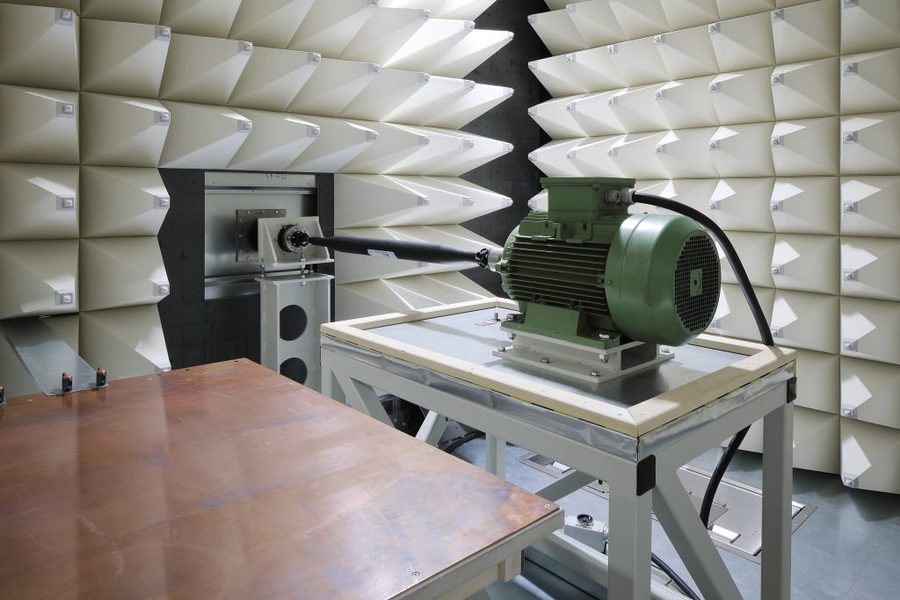

Frankonia EDTC-AX multi-axis chamber
Automotive · dynamometer

EDTC-AX

Multi-axis emission and immunity chamber for dynamic vehicle testing.

Details →

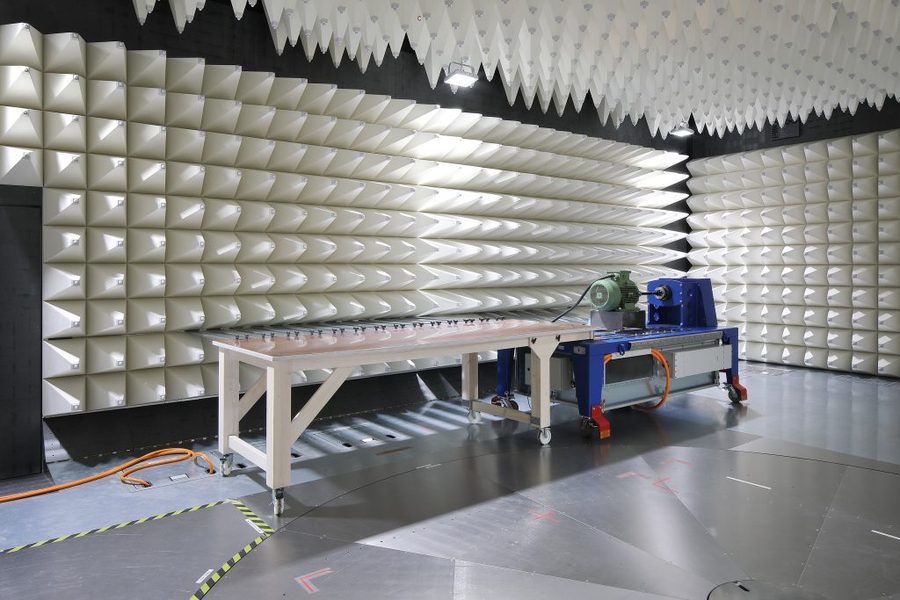

Frankonia EDTC-BB chamber with EMC BlueBox
Automotive · dynamometer

EDTC-BB

Vehicle chamber integrating the EMC BlueBox for automated measurement.

Details →

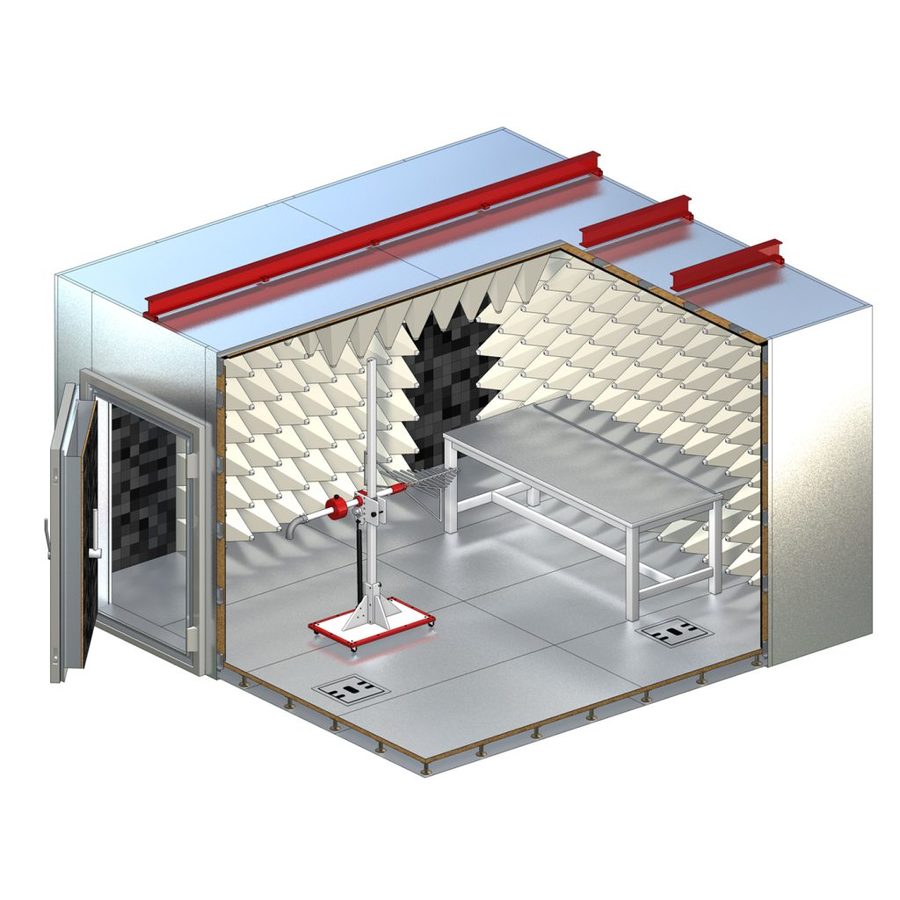

Frankonia MIL CHC chamber
Defence

MIL CHC

Military components testing chamber for MIL-STD-461.

Details →
Frankonia MIL-STD chamber
Defence

MIL-STD Chamber

MIL-STD-461 chamber for vehicles and large equipment.

Details →
Frankonia MIL-STD Chamber Advanced
Defence

MIL-STD Chamber Advanced

Enhanced MIL-STD-461 chamber for large vehicles and equipment.

Details →

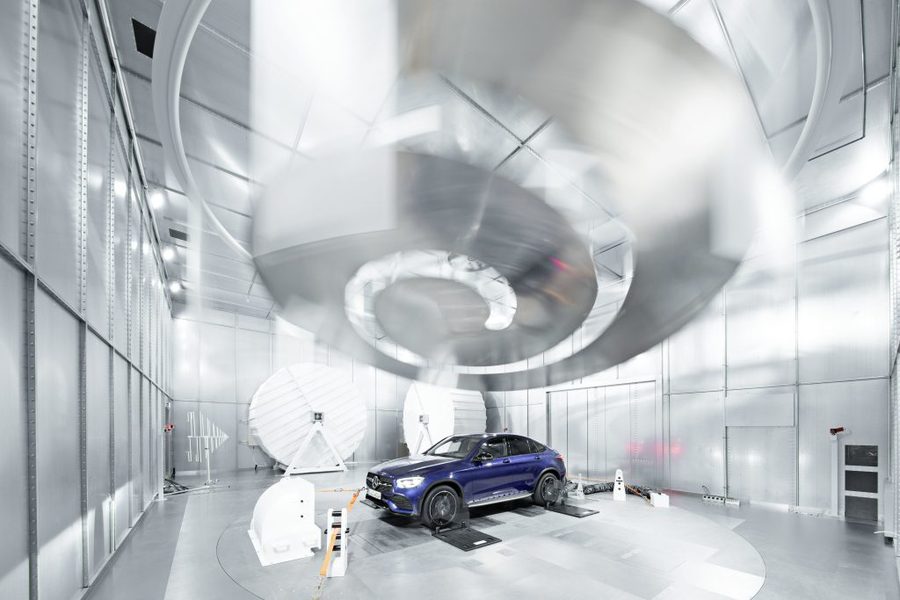

Frankonia reverberation chamber
Reverberation

Reverberation Chamber

Mode-stirred chamber for statistical field testing to IEC 61000-4-21, DO-160 and MIL-STD.

Details →

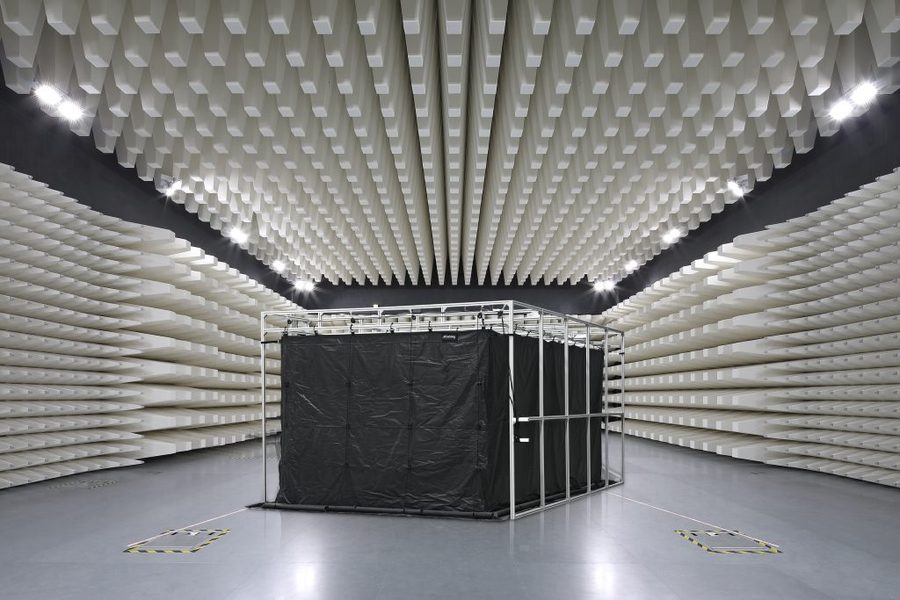

Frankonia reverberation tent
Reverberation

Reverberation Tent

Reverberation testing inside an existing EMC chamber without a second room.

Details →

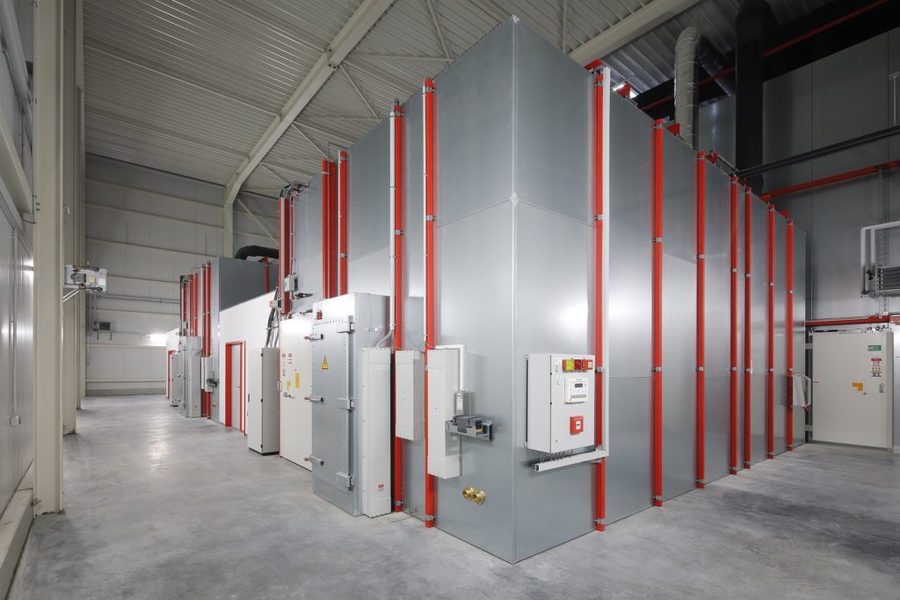

Frankonia shielded room
Shielding

Shielded Room

Modular, prefabricated RF-shielded rooms for test, secure and medical applications.

Details →
Validated to the standard

Chambers built for the test methods you are assessed against

Every Frankonia chamber is specified against the site validation method of the standard it will serve, and we validate it again after handover.

CISPR 16-1-4ANSI C63.4IEC 61000-4-3ISO 11452CISPR 25ECE R10MIL-STD-461IEC 61000-4-21
Frankosorb absorbers

Absorbers made by the chamber builder

Frankosorb absorbers are rated A2 non-combustible to EN 13501-1 and are chosen per chamber to match the frequency range and test distance.

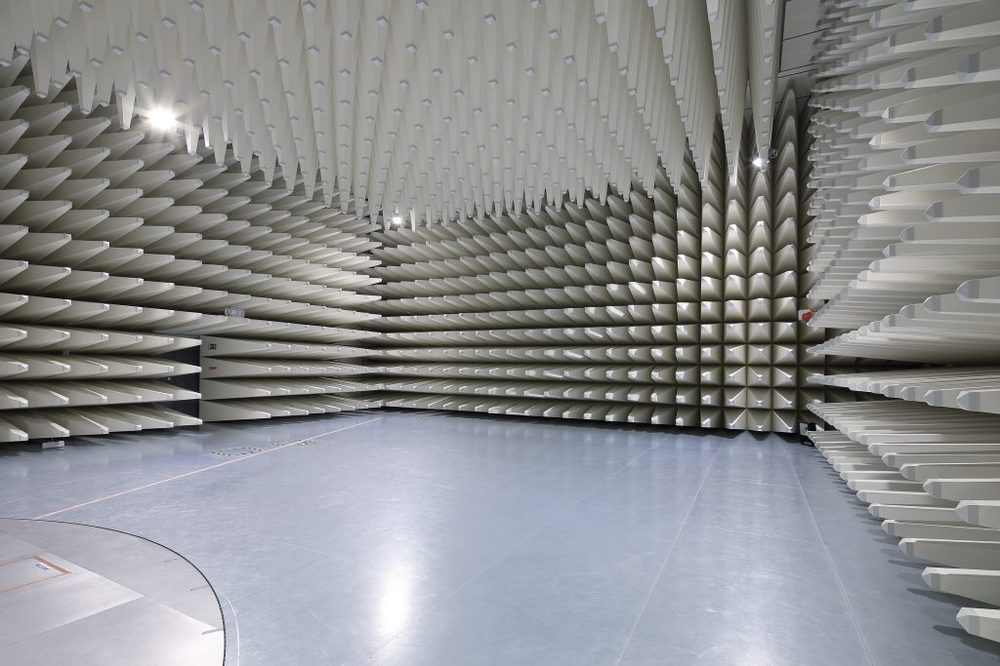

Frankosorb pyramid absorbers

Pyramid series

Classic pyramidal absorbers for EMC and MIL chambers.

  • P600 and P900: 80 MHz to 18 / 40 GHz, short pyramids for MIL and high-frequency chambers
  • P2000, P2200 and P2400: 26 / 30 MHz to 18 / 40 GHz, long pyramids that remove the need for ferrite tiles

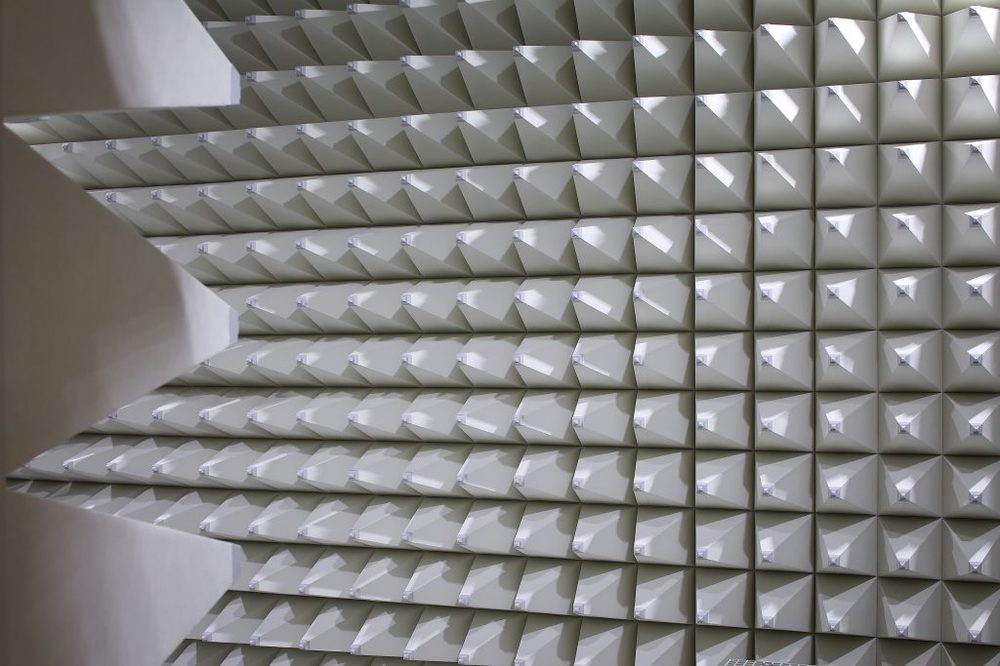

Frankosorb hybrid absorbers

Hybrid and Turbine series

Ferrite tiles paired with short hybrid pyramids for impedance-optimised broadband absorption.

  • Hybrid: 30 MHz to 18 / 40 GHz
  • H1300 and H1600 Turbine: next-generation geometry with improved low-frequency performance
Frankosorb HF absorbers for antenna chambers

HF series for antenna chambers

Absorbers for OTA, near-field and far-field antenna measurement chambers.

  • HFK600: 400 MHz to 40 GHz short wedge, horizontal or vertical mounting
  • P1070HF-A2: 200 MHz to 40 GHz for full-vehicle antenna chambers
  • P1400HF-A2: 70 MHz to 40 GHz with extended low-frequency coverage

Frankosorb details at frankonia-solutions.com →

Shielding and gates

Shielding performance to EN 50147-1

Self-supporting modular construction from 2.0 mm galvanised PAN panels, with single-leaf, double-leaf and sliding doors and fully automatic sliding gates, plus platforms to 80 t and ramps.

Guaranteed shielding attenuation, dB

04080120 90100110120120110100100 10 kHz100 kHz1 MHz100 MHz400 MHz1 GHz18 GHz40 GHz magnetic fieldplane wavemicrowave
PAN shielding panels2.0 mm galvanised sheet steel in a self-supporting modular system with steel frame structures designed in-house.
DoorsSingle-leaf and double-leaf doors with mechanical latching, and sliding doors, all with optional pneumatic or electric assistance.
Sliding gatesFully automatic sliding gates with electric drive and pneumatic latching for vehicle chambers.
Platforms and rampsAutomatic platforms from 5 t to 80 t, automatic ramps with or without pit, electric ramps to 800 kg and manual ramps.

Shielding and gates at frankonia-solutions.com →

Automation

Turntables, antenna masts and controller

Positioning built for the chamber, with a controller that speaks SCPI and GPIB to the EMC software you already run.

Frankonia FTM turntable

FTM turntables

Turntables with integrated grounding ring, energy chains and optional exhaust, cooling and dynamometer integration.

  • Diameters from 1.2 m to 11.0 m for semi anechoic chambers
  • 1.5 m to 2.0 m with transparent top for fully anechoic chambers
  • Load capacity from 500 kg to 80,000 kg
  • Mobile turntable solutions available

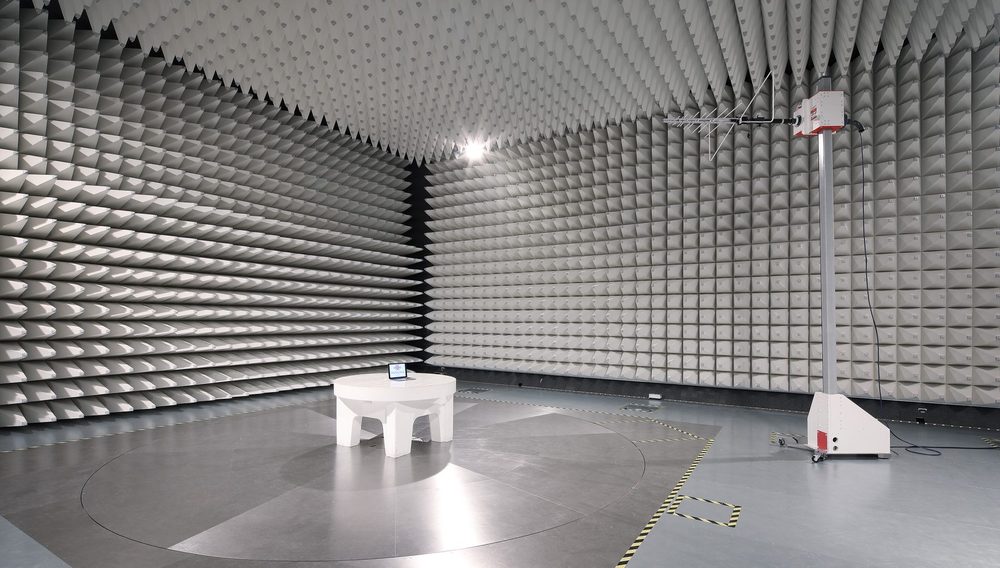

Frankonia FAM antenna mast

FAM, FBM and FAS antenna masts

Fibreglass and plastic masts that keep reflections out of the measurement.

  • FAM2-4: 1.0 m to 4.0 m height scan; FAM2-6: 1.0 m to 6.0 m; antennas to 12 kg, accuracy ±5 mm, 10 to 150 mm/s, CISPR 16-1-4
  • FBM boresight mast with automatic tilt calculation to ±0.5° for ANSI C63.4 and CISPR 16-1-4
  • FAS telescopic antenna stand for tests without height scan
FC06.1 controllerIndependent SCPI command set with GPIB, compatible with Rohde & Schwarz, Teseq, Nexio, Toyo and TDK test software.
Driven by our own softwareICX Lab's measurement programs already control Frankonia turntables and masts, so integration and support are in-house.
Works with Nexio BAT-EMCAutomated height scan, polarisation and turntable sweeps under BAT-EMC for full-compliance emission measurement.

Automation at frankonia-solutions.com →

Why through ICX Lab

A chamber project managed in your time zone

Site survey and specificationWe match the chamber, absorbers and automation to the standards and products you will test, and prepare the site requirements.
Project management on siteDelivery, installation and commissioning coordinated locally with Frankonia's engineers.
Validation after handoverNormalised site attenuation and site VSWR measured in the finished chamber under the A2LA accredited scope, so the validation report goes straight into your accreditation file.
Complete laboratoryChamber, AMETEK CTS generators and amplifiers, Nexio BAT-EMC software and CHANGEN fibre links, cameras and fixtures delivered as one commissioned system.
